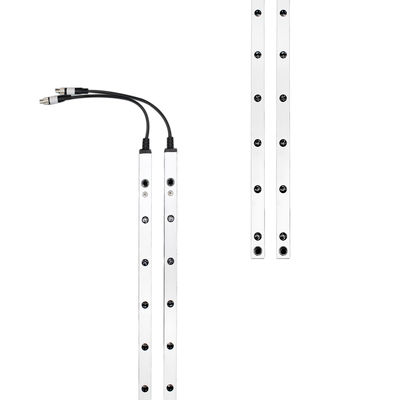

Manufacturer Of Safety Light Curtain IP67 Waterproof Blanking Function

Herkunftsort	CHINA
Markenname	JUTAI
Zertifizierung	CE
Modellnummer	Die in Absatz 1 genannten Vorschriften gelten für die in Absatz 1 genannten Fahrzeuge.
Min Bestellmenge	1
Preis	negotiable
Verpackung Informationen	Karikatur
Lieferzeit	5 - 8 Arbeitstage
Zahlungsbedingungen	T/T, L/C, D/A, D/P, Western Union, Paypal, Moneygram, Alipay
Versorgungsmaterial-Fähigkeit	1000 Stück pro Monat

IP -Bewertung

IP67

Funktion

Stanzen

Erfassungsabstand

Material

Aluminiumlegierung

Besonderheit

Korrosionsbeständigkeit

Leistungsspannung

DC12-24V

Betriebstemperatur

-20 ~ 60 ℃

Betriebsstrom

<50ma>

Ausgabe

Nr. Nc, COM

Strom arbeiten

< 20mA@DC12V

Spezifikation

2000*21*15 mm

Hervorheben

IP67 waterproof safety light curtain

light curtain with blanking function

IP67 blanking light curtain

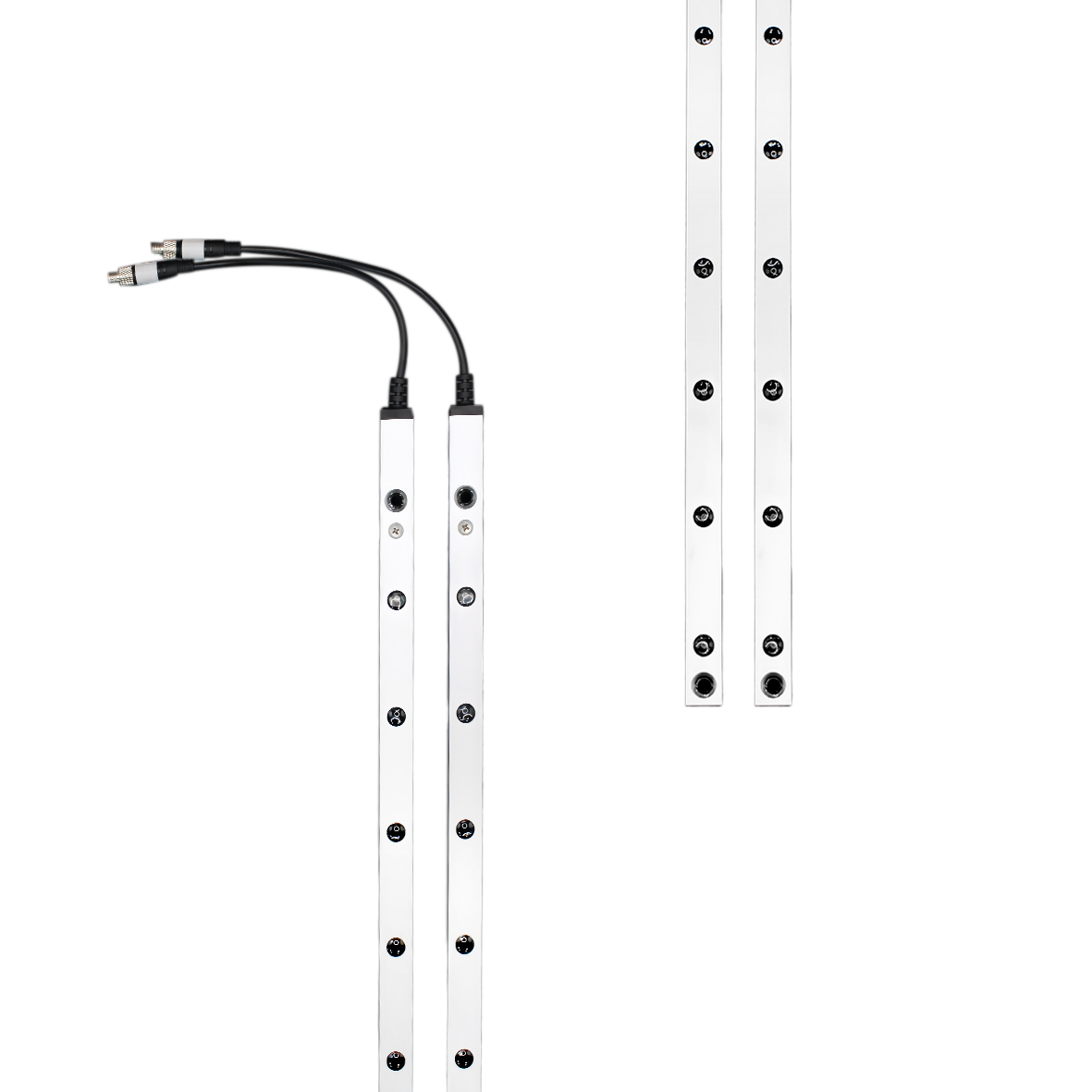

Shenzhen JUTAI IP67 Waterproof Safety Light Curtain Sensor – The Ultimate Industrial Safety Guardian

Name: Manufacturer Of Safety Light Curtain IP67 Waterproof Blanking Function
Brand: Shenzhen Jutai Comm Co., Ltd.
SKU: Die in Absatz 1 genannten Vorschriften gelten für die in Absatz 1 genannten Fahrzeuge.
Availability: InStock

Shenzhen JUTAI Comm Co., Ltd. proudly presents its IP67 Waterproof Safety Light Curtain Sensor, a benchmark of durability crafted to thrive in industrial environments where dust, moisture, and extreme conditions are commonplace. Boasting a premium IP67 waterproof and dustproof rating, this sensor ensures uninterrupted performance across manufacturing facilities, busy warehouses, sub-zero cold storage units, and high-speed automated production lines—making it an essential safeguard for modern industrial operations.

Versatile Model Range for Every Need

To address the diverse safety demands of industrial sites, we’ve developed 10 unique models, each offering flexible beam counts and lengths to perfectly match specific application requirements. Below is a breakdown of key model specifications:

Model	Length	Beam Quantity	Detection Range
CL05 - 4L	500mm	4 beams	Up to 8 meters*
CL05 - 8L	500mm	8 beams	Up to 8 meters*
CL10 - 8L	1000mm	8 beams	Up to 8 meters*
CL10 - 16L	1000mm	16 beams	Up to 8 meters*
CL15 - 8L	1500mm	8 beams	Up to 8 meters*
CL15 - 16L	1500mm	16 beams	Up to 8 meters*
CL20 - 8L	2000mm	8 beams	Up to 8 meters*
CL20 - 16L	2000mm	16 beams	Up to 8 meters*
CL25 - 8L	2500mm	8 beams	Up to 8 meters*
CL25 - 16L	2500mm	16 beams	Up to 8 meters*
Note: Detection range may be affected by environmental factors and the number of beams.

Standout Features

IP67 Protection & Rugged Build: Housed in a fully sealed, high-strength aluminum alloy casing, the sensor resists water jets and dust intrusion. It performs reliably in environments as cold as -25°C (ideal for cold storage) and holds up in food processing plants and other harsh indoor/outdoor settings.
Two Operational Modes:
- Blanking Mode: Perfect for door gap installations. It detects beam blockages one by one during door closure and triggers an immediate reversal if an obstacle is found.
- Normal Mode: Mounted on door sides, any beam interruption instantly sends a door-opening signal, maximizing safety.
Precision Detection: With a 100mm beam spacing, it accurately identifies objects to minimize accident risks. Its ultra-fast ≤20ms response time suits high-speed industrial workflows.
Energy Efficiency: Consuming just ≤4W of power, it helps businesses cut long-term operational costs.
Customizable Beams: Choose 4–16 beams to fit the exact detection area needs of your industrial setup.

Technical Specifications

Parameter	Details
Product Type	Safety Light Curtain Sensor
Waterproof Rating	IP67 (fully dustproof, waterproof; suitable for moist/harsh environments)
Working Voltage	24V DC ± 10%
Power Consumption	≤ 4W
Response Time	≤ 20 ms
Beam Count (Example: CL10-8L)	8 beams
Detection Range	Up to 8 meters (influenced by environment and beam count)
Beam Spacing	100mm
Operating Temp	-25°C to +75°C
Relative Humidity	95% (non-condensing)
Housing Material	High-impact aluminum alloy
Output Type	NPN or PNP (optional)
Response Mechanism	Light-based (object detection)
Mounting	Adjustable bracket (easy installation & alignment)
Safety Certification	CE Certified (Certificate No.: CTC142H1007801SC)

Key Applications & Benefits

Industrial Door Use Cases

Rolling Doors: Used in warehouses/factories for quick access; the sensor detects obstructions during closing and reopens the door to prevent harm.
Sectional Doors: Protects vertically opening doors (for heavy machinery access) by detecting people/objects in the door’s path.
High-Speed Doors: Ideal for cold storage, pharmaceutical, and food plants—stops and reopens doors if beams are blocked mid-close.
Foldable Doors: Prevents injuries from fast-moving foldable doors in high-traffic, space-constrained areas.
Automatic Sliding Doors: Detects objects/people in the door’s path to halt movement and avoid collisions (common in industrial/commercial spaces).
Fire Doors: Ensures safe closure in industrial sites by detecting obstacles, protecting people and vehicles.
Cold Storage Doors: Works flawlessly at -25°C, unaffected by moisture, condensation, or fog—reliable for cold rooms.

Other Industrial Scenarios

Material Handling (Conveyors): Prevents collisions between workers, machinery, and moving parts.
Robotic Arms: Stops rapid-moving robotic arms if a person/object crosses the beam, shielding workers.
Automated Guided Vehicles (AGVs): Enables safe AGV movement in dynamic warehouses/factories, avoiding obstacles and people.
Packaging Equipment: Halts high-speed packaging machinery if obstructions are detected, protecting operators and equipment.

Why Partner with Shenzhen JUTAI Comm Co., Ltd.?

10+ Years of Expertise: A leader in the sensor industry, offering robust, efficient, and cost-effective safety solutions.
Tailored Support: Free on-site evaluations and custom product solutions to meet your unique industrial needs.
24/7 Customer Service: Dedicated team available around the clock to resolve technical queries and assist with installation.
